So to start, we'll assume you already have Lilu and AppleALC installed, if you're unsure if it's been loaded correctly you can run the following in terminal(This will also check if AppleHDA is loaded, as without this AppleALC has nothing to patch):
If all 3 show up, you're good to go. And make sure VoodooHDA is not present. This will conflict with AppleALC otherwise.
If you're having issues, see the
So for this example, we'll assume your codec is ALC1220. To verify yours, you have a couple options:
Checking motherboard's spec page and manual
Check Device Manager in Windows
Check HWInfo64 in Windows
Make sure both Summary-only and Sensors-only are deselected when opening
Check AIDA64 Extreme in Windows
Run cat in terminal on Linux
cat /proc/asound/card0/codec#0 | less
Now with a codec, we'll want to cross reference it with AppleALC's supported codec list:
With the ALC1220, we get the following:
So from this it tells us 2 things:
Which hardware revision is supported(0x100003), only relevant when multiple revisions are listed with different layouts
Various layout IDs supported by our codec(layout 1, 2, 3, 5, 7, 11, 13, 15, 16, 21, 27, 28, 29, 34)
Now with a list of supported layout IDs, we're ready to try some out
Note: If your Audio Codec is ALC 3XXX this is likely false and just a rebranded controller, do your research and see what the actual controller is.
An example of this is the ALC3601, but when we load up Linux the real name is shown: ALC 671
To test out our layout IDs, we're going to be using the boot-arg alcid=xxx where xxx is your layout. Remember that to try layout IDs one at a time. Do not add multiple IDs or alcid boot-args, if one doesn't work then try the next ID and etc
Once you've found a Layout ID that works with your hack, we can create a more permanent solution for closer to how real macs set their Layout ID.
With AppleALC, there's a priority hierarchy with which properties are prioritized:
alcid=xxx boot-arg, useful for debugging and overrides all other values
alc-layout-id in DeviceProperties, should only be used on Apple hardware
layout-id in DeviceProperties, should be used on both Apple and non-Apple hardware
Then add this PciRoot with the child layout-id to your config.plist under DeviceProperties -> Add:
So in this example, alcid=11 would become either:
layout-id | Data | <0B000000>
layout-id | Number | <11>
Note that the final HEX/Data value should be 4 bytes in total(ie. 0B 00 00 00 ), for layout IDs surpassing 255(FF 00 00 00) will need to remember that the bytes are swapped. So 256 will become 00 01 00 00
HEX Swapping and data size can be completely ignored using the Decimal/Number method
Reminder: You MUST remove the boot-arg afterwards, as it will always have the top priority and so AppleALC will ignore all other entries like in DeviceProperties
This is a common issue with when running AppleALC with AMD, specifically no patches have been made to support Mic input. At the moment the "best" solution is to either buy a USB DAC/Mic or go the VoodooHDA.kext method. Problem with VoodooHDA is that it's been known to be unstable and have worse audio quality than AppleALC
Enable PowerTimeoutKernelPanic in your config.plist:
Kernel -> Quirks -> PowerTimeoutKernelPanic -> True
So for troubleshooting, we'll need to go over a couple things:
To start, we'll assume you already have Lilu and AppleALC installed, if you're unsure if it's been loaded correctly you can run the following in terminal(This will also check if AppleHDA is loaded, as without this AppleALC has nothing to patch):
If all 3 show up, you're good to go. And make sure VoodooHDA is not present. This will conflict with AppleALC otherwise. Other kexts to make sure you do not have in your system:
RealtekALC.kext
CloverALC.kext
VoodooHDA.kext
HDA Blocker.kext
HDAEnabler#.kext(# can be 1, 2, or 3)
Hey Lilu and/or AppleALC aren't showing up
Generally the best place to start is by looking through your OpenCore logs and seeing if Lilu and AppleALC injected correctly:
If it says failed to inject:
Main places you can check as to why:
Injection order: Make sure that Lilu is above AppleALC in kext order
All kexts are latest release: Especially important for Lilu plugins, as mismatched kexts can cause issues

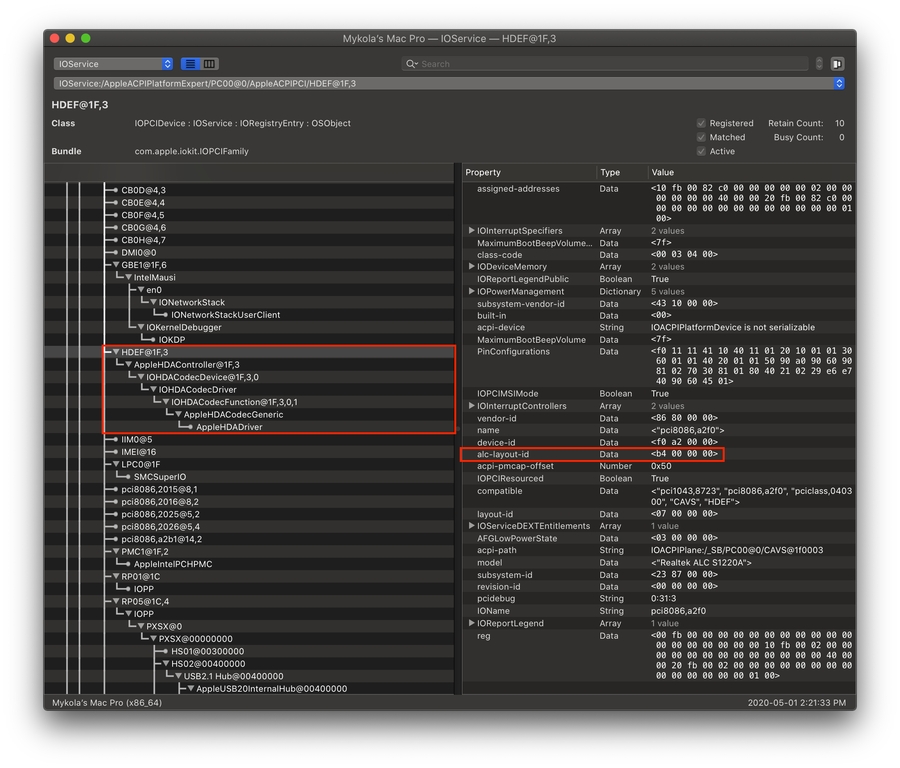

As you can see from the above image, we have the following:
HDEF Device meaning our rename did the job
AppleHDAController attached meaning Apple's audio kext attached successfully
alc-layout-id is a property showing our boot-arg/DeviceProperty injection was successful
Note: layout-id | Data | 07000000 is the default layout, and alc-layout-id will override it and be the layout AppleHDA will use
Note: Do not rename your audio controller manually, this can cause issues as AppleALC is trying to patch already. Let AppleALC do it's work.
More examples:

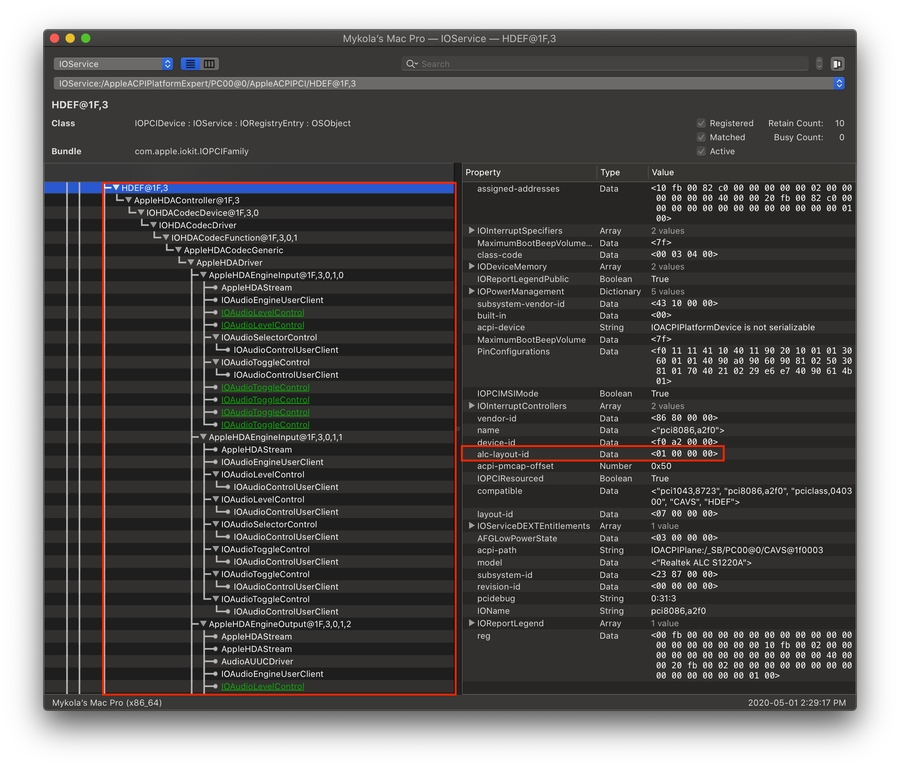

As you can see from the above 2, the right image is missing a lot of AppleHDAInput devices, meaning that AppleALC can't match up your physical ports to something it can understand and output to. This means you've got some work to find the right layout ID for your system.
This section is mainly relevant for those who were replacing the stock AppleHDA with a custom one, this is going to verify whether or not yours is genuine:
This will check if the signature is valid for AppleHDA, if it's not then you're going to need to either get an original copy of AppleHDA for your system and replace it or update macOS(kexts will be cleaned out on updates). This will only happen when you're manually patched AppleHDA so if this is a fresh install it's highly unlikely you will have signature issues.
Sometimes rare conditions can occur where your hardware isn't initialized in time for AppleHDAController resulting in no sound output. To get around this, you can either:
Specify in boot-args the delay:
Or Specify via DeviceProperties(in your HDEF device):
For rare situations where you have 2 sounds cards(ex. onboard Realtek and an external PCIe card), you may want to avoid AppleALC patching devices you either don't use or don't need patching(like native PCIe cards). This is especially important if you find that AppleALC will not patch you onboard audio controller when the external one is present.
Now with this large output you'll want to find your PciRoot pathing, for this example, lets use a Creative Sound-Blaster AE-9PE PCIe audio card. For this, we know the PCI ID is 1102:0010. So looking through our gfxutil output we get this:
From here, we can clearly see our PciRoot pathing is:
Note: This will assume you know both the Vendor and Device ID of the external sound card. For reference, these are the common Vendor IDs:
Creative Labs: 1102
AsusTek: 1043
Note 2: Your ACPI and PciRoot path will look different, so pay attention to your gfxutil output
Now that we have our PciRoot pathing, we can finally open up our config.plist and add our patch.
Under DeviceProperties -> Add, you'll want to add your PciRoot(as a Dictionary) with the child called external-audio:
And with this done, you can reboot and AppleALC should now ignore your external audio controller!
If you find that rebooting from Windows into macOS breaks audio, we recommend either adding alctcsel=1 to boot-args or add this property to your audio device in DeviceProperties:
If no layout ID works, try creating for your system - these are required on laptops and some desktops for AppleHDA to work.
To start, we'll need to find out where our Audio controller is located on the PCI map. For this, we'll be using a handy tool called then with the macOS terminal:
Note that AppleALC can accept both Decimal/Number and Hexadecimal/Data, generally the best method is Hex as you avoid any unnecessary conversions. You can use a simple to find yours. printf '%x\n' DECI_VAL:
This is likely do to IRQ conflicts, on Clover there's a whole sweep of ACPI hot-patches that are applied automagically. Fixing this is a little bit painful but 's FixHPET option can handle most cases.
For odd cases where RTC and HPET take IRQs from other devices like USB and audio, you can reference the example in the trashOS repo
Note: To setup file logging, see .
So with AppleALC, one of the most easiest things to check if the patching was done right was to see if your audio controller was renamed correctly. Grab and see if you have an HDEF device:
The above boot-arg/property will delay AppleHDAController by 1000 ms(1 second), note the ALC delay cannot exceed
To get around this, we'll first need to identify the location of both our audio controllers. The easiest way is to run and search for the PCI IDs:
